Volcengine Model Purchase Guide

For self-hosted OpenViking, this guide covers activating Volcano Ark models, obtaining an API key, and verifying the server configuration. Managed OpenViking clients do not need these local model settings; see the Quick Start.

Overview

OpenViking requires the following model services:

Model Type	Purpose	Recommended Model
VLM (Vision Language Model)	Content understanding, semantic generation	doubao-seed-2-0-lite-260428
Embedding	Vectorization, semantic retrieval	doubao-embedding-vision-251215

Prerequisites

• A valid mobile phone number or email address
• Completed real-name authentication (Individual or Enterprise)

Purchase Process

1. Register an Account

Visit the Volcengine Official Website:

1. Click "Login/Register" (登录/注册) in the top right corner.
2. Select a registration method (Phone/Email).
3. Complete verification and set a password.
4. Perform real-name authentication.

2. Activate Volcano Ark

Volcano Ark is Volcengine's AI model service platform.

Access the Console

1. After logging in, enter the Console.
2. Search for "Volcano Ark" (火山方舟).
3. Click to enter the Volcano Ark Console.
4. For first-time use, you need to click "Activate Service" (开通服务) and agree to the agreement.

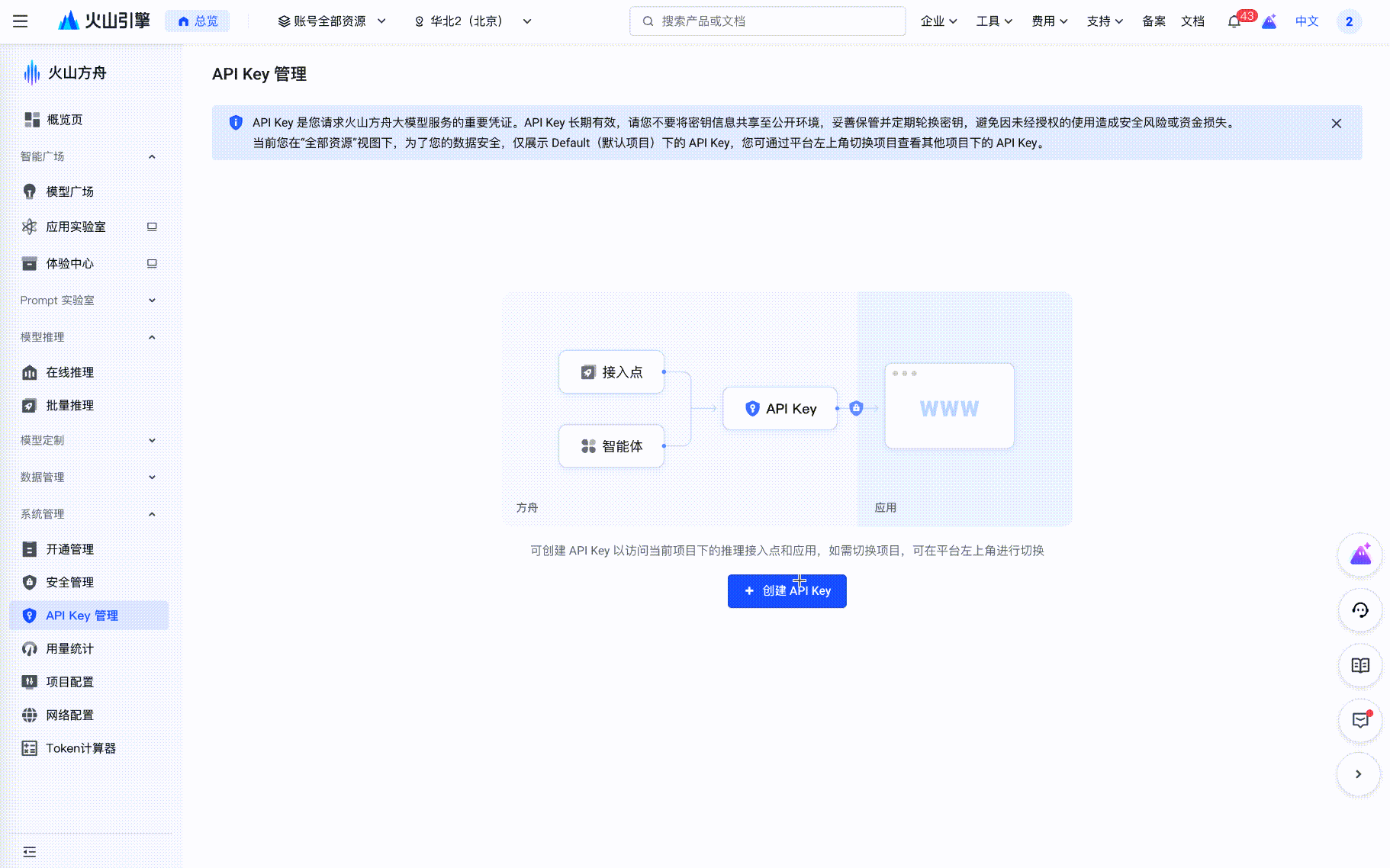

3. Create API Key

Visit: API Key Management Page

All model calls require an API Key.

1. Select "API Key Management" (API Key 管理) in the left navigation bar of Volcano Ark.
2. Click "Create API Key" (创建 API Key).
3. Copy and save the API Key for subsequent configuration.

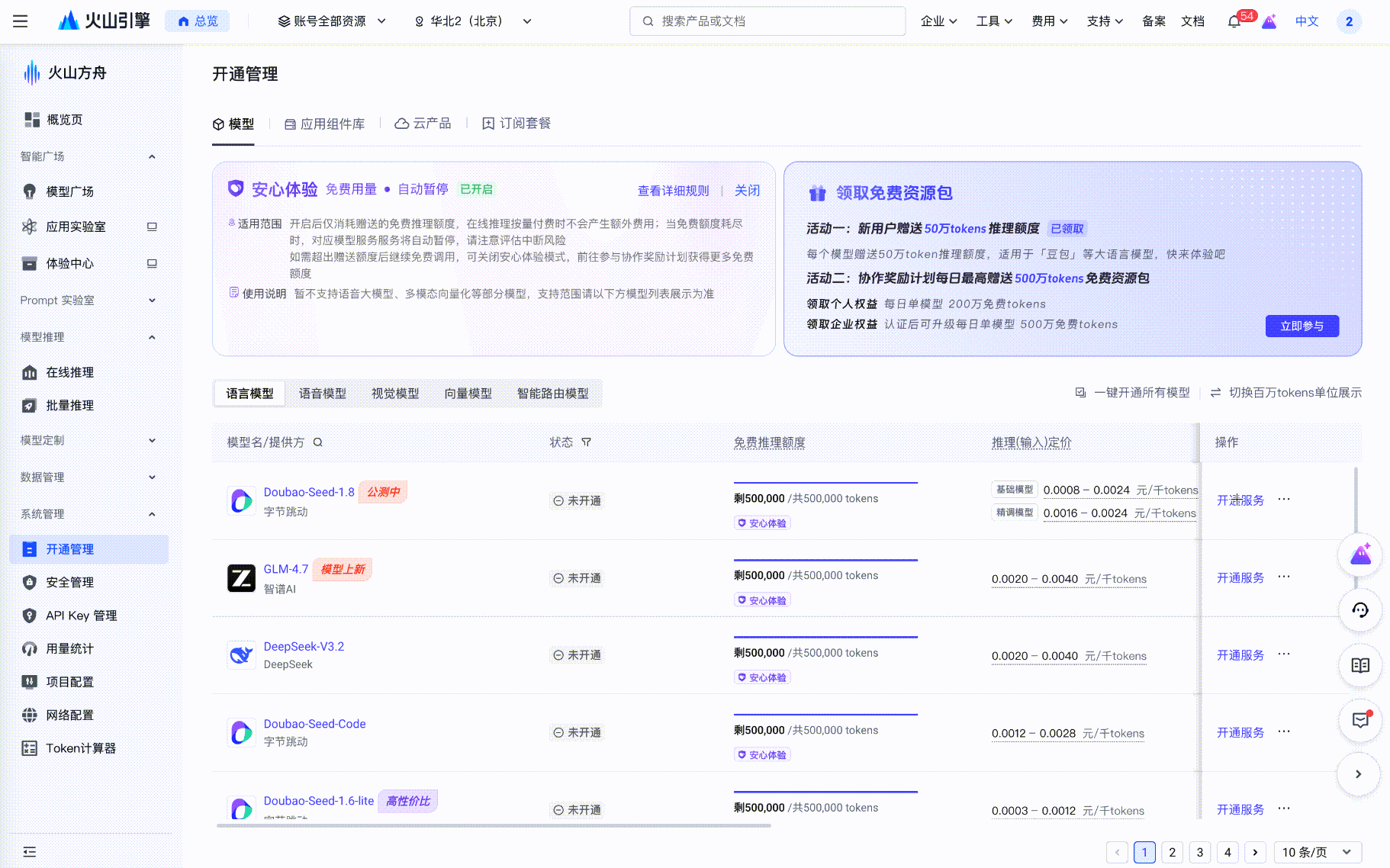

4. Activate VLM Model

Visit: Model Management Page

1. Select "Provisioning Management" (开通管理) in the left navigation bar.
2. Select the "Language Model" (语言模型) column.
3. Find the Doubao-Seed-2.0 model.
4. Click the "Activate" (开通) button.
5. Confirm the payment method.

After activation, you can use the model ID directly: doubao-seed-2-0-lite-260428

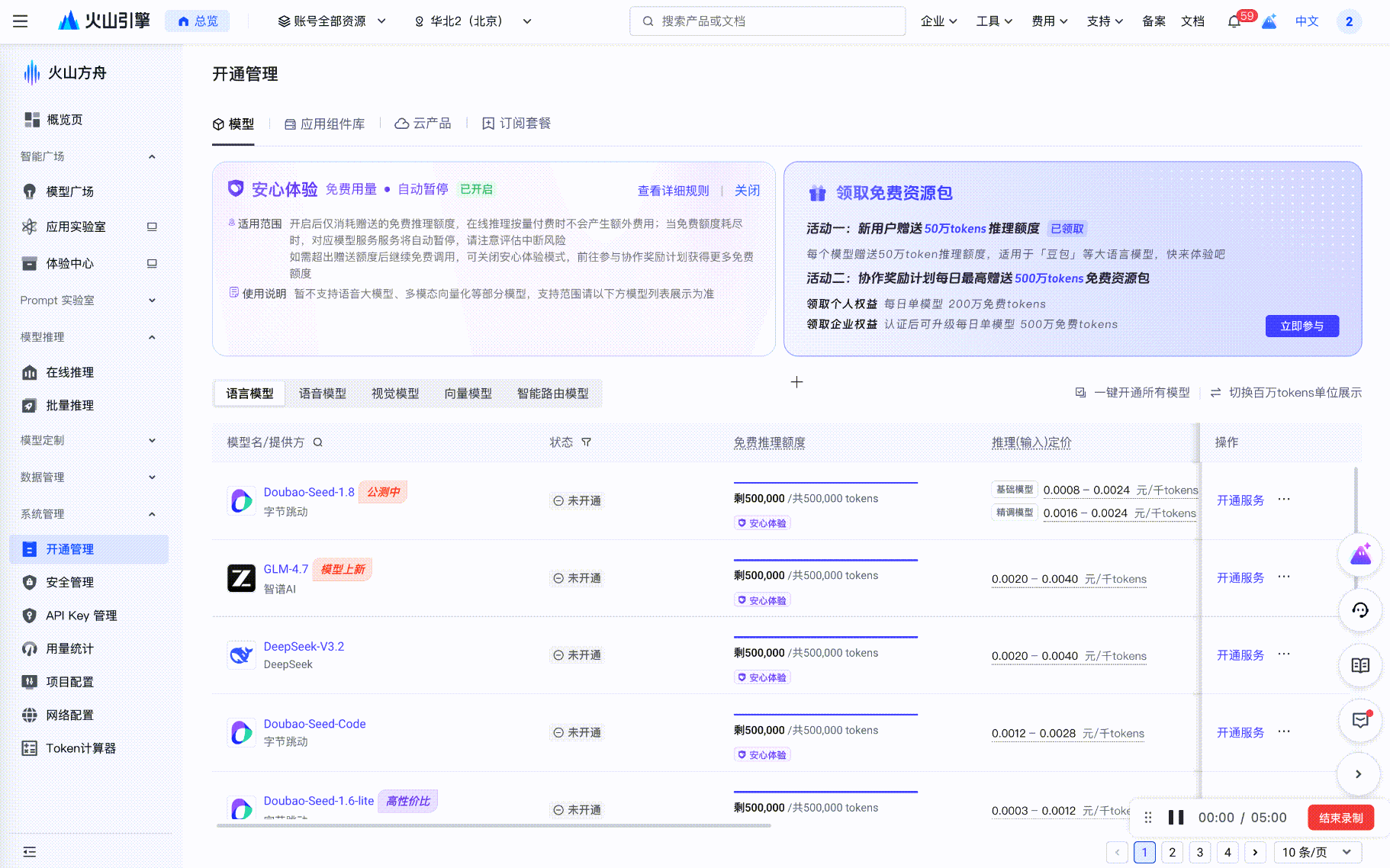

5. Activate Embedding Model

Visit: Model Management Page

1. Select "Provisioning Management" (开通管理) in the left navigation bar.
2. Select the "Vector Model" (向量模型) column.
3. Find the Doubao-Embedding-Vision model.
4. Click "Activate" (开通).
5. Confirm the payment method.

After activation, use the model ID: doubao-embedding-vision-251215

Configure OpenViking

Configuration Template

This template shows the configuration structure; replace all string placeholders before use. For an existing configuration, update only the model sections and preserve storage, authentication, and other settings:

{
  "vlm": {
    "provider": "<provider-type>",
    "api_key": "<your-api-key>",
    "model": "<model-id>",
    "api_base": "<api-endpoint>",
    "temperature": 0.1,
    "max_retries": 3
  },
  "embedding": {
    "dense": {
      "provider": "<provider-type>",
      "api_key": "<your-api-key>",
      "model": "<model-id>",
      "api_base": "<api-endpoint>",
      "dimension": 1024,
      "input": "<input-type>"
    }
  }
}

Configuration Fields Explanation

VLM Configuration Fields

Field	Type	Required	Description
provider	string	Yes	Model service provider, fill in "volcengine" for Volcengine
api_key	string	Yes	Volcano Ark API Key
model	string	Yes	Model ID, e.g., doubao-seed-2-0-lite-260428
api_base	string	No	API endpoint address, defaults to Beijing region endpoint, see Appendix - Regional Endpoints for details
temperature	float	No	Generation temperature; supported values depend on the model. This example uses 0.1
max_retries	int	No	Number of retries when request fails, recommended 3

Embedding Configuration Fields

Field	Type	Required	Description
provider	string	Yes	Model service provider, fill in "volcengine" for Volcengine
api_key	string	Yes	Volcano Ark API Key
model	string	Yes	Model ID, e.g., doubao-embedding-vision-251215
api_base	string	No	API endpoint address, defaults to Beijing region endpoint, see Appendix - Regional Endpoints for details
dimension	int	Yes	Must match the model output and index; this example selects 1024
input	string	No	Input type: "multimodal" (multimodal) or "text" (plain text), default "multimodal"

Configuration Example

Add these model sections to ~/.openviking/ov.conf, preserving existing unrelated settings:

{
  "vlm": {
    "provider": "volcengine",
    "api_key": "your-ark-api-key",
    "model": "doubao-seed-2-0-lite-260428",
    "api_base": "https://ark.cn-beijing.volces.com/api/v3",
    "temperature": 0.1,
    "max_retries": 3
  },
  "embedding": {
    "dense": {
      "provider": "volcengine",
      "api_key": "your-ark-api-key",
      "model": "doubao-embedding-vision-251215",
      "api_base": "https://ark.cn-beijing.volces.com/api/v3",
      "dimension": 1024,
      "input": "multimodal"
    }
  }
}

Replace both your-ark-api-key values with the key from Step 3. This model credential is separate from the user/admin key used to connect to OpenViking Server.

Verify Configuration

Test Connection

Check model configuration, then start the server:

openviking-server doctor
openviking-server

In another terminal, configure the CLI and create quickstart.md using the Quick Start. Import it into an unused target:

ov add-resource ./quickstart.md --to viking://resources/model-check --wait
ov find "Who owns the backup process?" --uri viking://resources/model-check

An accepted import does not establish that model configuration works. Wait for completion before searching; after a timeout, inspect the returned task ID, and after failure, read the task error.

View Usage

In the Volcano Ark Console:

1. Visit the "Overview" (概览) page.
2. View Token Consumption Statistics.
3. Check billing details in "Billing Center" (费用中心).

Billing Information

Billing Methods

Model Type	Billing Unit
VLM	Check the selected model’s input/output billing rules in Ark pricing
Embedding	Check the selected model and input modality in Ark pricing

Free Tier

Check your console and Volcano Ark pricing for credit availability, eligible models, expiration, and charges after credits run out. Measure token usage with a small document before estimating bulk-ingestion cost; credits do not guarantee coverage of every trial workload.

Troubleshooting

Common Errors

Invalid API Key

Error: Invalid API Key

Solution:

1. Check that the API key was copied completely without extra whitespace.
2. Confirm that the API Key has not been deleted or expired.
3. Re-create an API Key.

Model Not Activated

Error: Model not activated

Solution:

1. Check the model status in the Volcano Ark Console.
2. Confirm that the selected model ID is available to the account.
3. Check if the account balance is sufficient.

Network Connection Issues

Error: Connection timeout

Solution:

1. Check your network connection.
2. Confirm that the api_base configuration is correct.
3. If you are overseas, confirm that you can access Volcengine services.
4. If the service is reachable but slow, adjust the relevant timeout using the Configuration Guide.

Getting Help

• Volcengine Documentation Center
• Volcano Ark API Documentation
• OpenViking GitHub Issues

Related Documentation

• Configuration Guide - Complete configuration reference
• Quick Start - Start using OpenViking

Appendix

Regional Endpoints

Region	API Base
Beijing	https://ark.cn-beijing.volces.com/api/v3

This guide uses the Beijing endpoint from official examples. For another region, copy the model endpoint from the console rather than substituting a region name in the hostname.

Model Version Reference

Purpose	Model ID used in this guide
VLM	doubao-seed-2-0-lite-260428
Embedding	doubao-embedding-vision-251215

These are example versions, not a claim about the latest release. See Ark model releases for availability and vectorization documentation for input and dimension settings. Before changing embedding models, check whether the existing index needs rebuilding.
